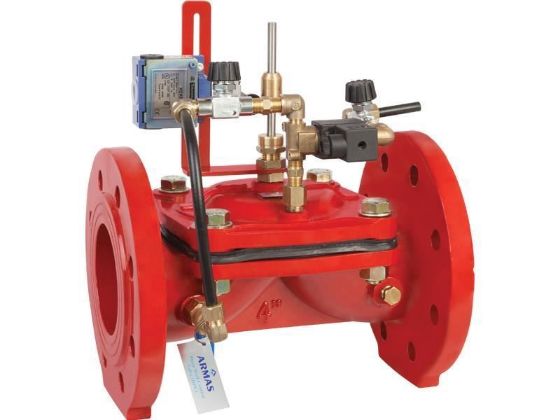

Submersible Pump Control Valve

SKU: 600-Series-DPC
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

Submersible Pump Control Valve prevents surges caused by pump start-up or shut-off.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
NZ $636.00
*
  • Grooved End
    Grooved End
  • Flanged
    Flanged
*
*
*
*

Armas 600 Series - Submersible Pump Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Deep-well Pump control valve is mounted on network in TE configuration since it is a electric activated release valve.
  • Since valve’s function is to release, valve diameter may be selected as equal to or in closest smaller size than main pipe diameter. Valve diameter should be selected as smaller than main pipe diameter.
  • Made in Turkey



Submersible Pump Control Valves 600 series parts

ARMAS 600 Series Submersible Pump Control Valve

Armas Submersible Pump Control Valve is a relief control valve designed for putting deep-well type pumps into/out of service automatically. Valve is connected on main line with a “TE” piece. Valve is in open position before pump operates. When pump starts up, valve is closed by itself slowly without causing surge and increases system pressure gradually. Before pump stops, valve opens by itself slowly and automatically and decreases system pressure gradually.

COMPONENTS:

  1. Solenoid Pilot Valve
  2. Ball Valve
  3. In-line Finger Filter
  4. Limit Switch Assemble
  5. Needle Valve
  6. Plug

ARMAS 600 Series Submersible Pump Control Valve Sample Application

Submersible Pump Control Valves 600 series sample

Armas 600 Series - Submersible Pump Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Deep-well Pump control valve is mounted on network in TE configuration since it is a electric activated release valve.
  • Since valve’s function is to release, valve diameter may be selected as equal to or in closest smaller size than main pipe diameter. Valve diameter should be selected as smaller than main pipe diameter.
  • Made in Turkey



Submersible Pump Control Valves 600 series parts

ARMAS 600 Series Submersible Pump Control Valve

Armas Submersible Pump Control Valve is a relief control valve designed for putting deep-well type pumps into/out of service automatically. Valve is connected on main line with a “TE” piece. Valve is in open position before pump operates. When pump starts up, valve is closed by itself slowly without causing surge and increases system pressure gradually. Before pump stops, valve opens by itself slowly and automatically and decreases system pressure gradually.

COMPONENTS:

  1. Solenoid Pilot Valve
  2. Ball Valve
  3. In-line Finger Filter
  4. Limit Switch Assemble
  5. Needle Valve
  6. Plug

ARMAS 600 Series Submersible Pump Control Valve Sample Application

Submersible Pump Control Valves 600 series sample
