Solenoid Controlled Pressure Reducing Valve

SKU: 600-Series-PREL
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

Baccara Solenoid Controlled Pressure Reducing Valves can be used at advanced automation systems with its pressure reducing function.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
NZ $312.00
*
  • Threaded
    Threaded
  • Grooved End
    Grooved End
  • Flanged
    Flanged
*
*
*
*
*
*

Armas 600 Series - Baccara Solenoid Controlled Pressure Reducing Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Solenoid Controlled Pressure reducing control valve

ARMAS 600 Series Solenoid Controlled Pressure Reducing Valve

Armas Solenoid Controlled Pressure Reducing Valve is the hydraulic control valve which reduces high upstream pressure value into desired lower pressure value. Control of main valve is achieved by means of built-in 3/2 -way solenoid pilot valves. Electric signal for solenoid pilot valves is ensured by means of a control device, time relay, main switch and PLC control units etc. Automated control can be easily ensured by this way in application systems.

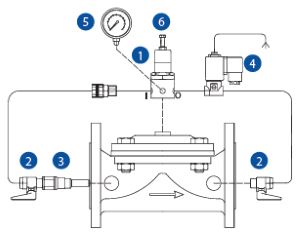

COMPONENTS:

  1. Pressure Reducing Pilot Valve
  2. Ball Valves
  3. In-line Finger Filter
  4. Solenoid Pilot Valve
  5. Pressure Gauge
  6. Adjustment Bolt

ARMAS 600 Series Solenoid Controlled Pressure Reducing Valve Sample Application

Solenoid Controlled Pressure reducing control valve sample

Armas 600 Series - Baccara Solenoid Controlled Pressure Reducing Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Solenoid Controlled Pressure reducing control valve

ARMAS 600 Series Solenoid Controlled Pressure Reducing Valve

Armas Solenoid Controlled Pressure Reducing Valve is the hydraulic control valve which reduces high upstream pressure value into desired lower pressure value. Control of main valve is achieved by means of built-in 3/2 -way solenoid pilot valves. Electric signal for solenoid pilot valves is ensured by means of a control device, time relay, main switch and PLC control units etc. Automated control can be easily ensured by this way in application systems.

COMPONENTS:

  1. Pressure Reducing Pilot Valve
  2. Ball Valves
  3. In-line Finger Filter
  4. Solenoid Pilot Valve
  5. Pressure Gauge
  6. Adjustment Bolt

ARMAS 600 Series Solenoid Controlled Pressure Reducing Valve Sample Application

Solenoid Controlled Pressure reducing control valve sample
