Pentax Submersible Multistage Pumps 50 Hz

Be the first to review this product

Submersible multistage centrifugal pumps for 4” wells, particularly suitable for very high pressure and flow rate requirements.

Max Capacity

25- 400 l/min

Max Head

Up to 320 m

Power

0.5 - 7.5 HP

Well Dimension

Call for pricing

SKU: 4S-Pentax

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

+ -

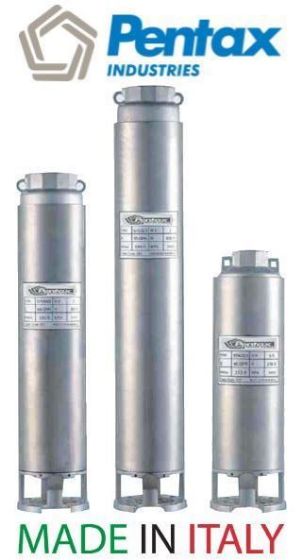

Pentax Submersible multistage centrifugal pumps for 4” wells

Particularly suitable for water rising and distribution installations requiring very high pressures and flow rates.

Applications

Water plants and systems for residential and industrial use, for continuous or intermittent duty operation.
Pressurizing system.
Irrigation plants.

Desing Features

Motor coupling flange and discharge head are made in stainless steel (AISI 304). Incorporated non-return check valve. Floating type impellers in Noryl Diffusers in non toxic polycarbonate Shell, pump shaft, coupling, cable shield, suction screen external shell and all screws are in stainless steel. Pump flanges for coupling with motors are made according to NEMA standards.

Operating Conditions:

Flow rates 25 - 400 l/min.
Heads up to 320 m
Maximum fluid temperature: +30ºC
Max Sand content: 150 g/m3
Power: 0.5 - 7.5 HP

* PLEASE CHECK BELOW PRODUCT CATALOGUE TO IDENETIFY REQUIRED PUMP MODEL AND CONTACT US TO GET A QUOTE.

Download Catalogue: Pentax Submersible multistage centrifugal pumps for 4” wells
