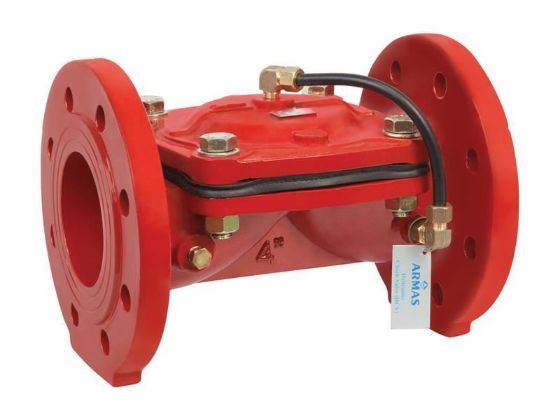

Hydraulic Check Valve

SKU: 600-Series-HCV
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

Hydraulic Check Valves prevent back-flow.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
NZ $215.00
*
  • Grooved End
    Grooved End
  • Flanged
    Flanged
*
*
*
*

Armas 600 Series - Hydraulic Check Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Hydraulic Check Valve 600 series parts

ARMAS 600 Series Hydraulic Check Valve

Armas Hydraulic Check Valve is hydraulically controlled check valve which operates with line pressure and prevents back-flow in system. When downstream pressure value exceeds upstream pressure value, valve is closed as wholly sealed without causing surge. When upstream pressure value exceeds downstream pressure value, check valve is opened by itself slowly. So it damps pressure surges formed during start-up.

COMPONENTS:

  1. In-line Finger Filter
  2. Plug

ARMAS 600 Series Hydraulic Check Valve Sample Application

Hydraulic Check Valve 600 series sample

Armas 600 Series - Hydraulic Check Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Hydraulic Check Valve 600 series parts

ARMAS 600 Series Hydraulic Check Valve

Armas Hydraulic Check Valve is hydraulically controlled check valve which operates with line pressure and prevents back-flow in system. When downstream pressure value exceeds upstream pressure value, valve is closed as wholly sealed without causing surge. When upstream pressure value exceeds downstream pressure value, check valve is opened by itself slowly. So it damps pressure surges formed during start-up.

COMPONENTS:

  1. In-line Finger Filter
  2. Plug

ARMAS 600 Series Hydraulic Check Valve Sample Application

Hydraulic Check Valve 600 series sample
