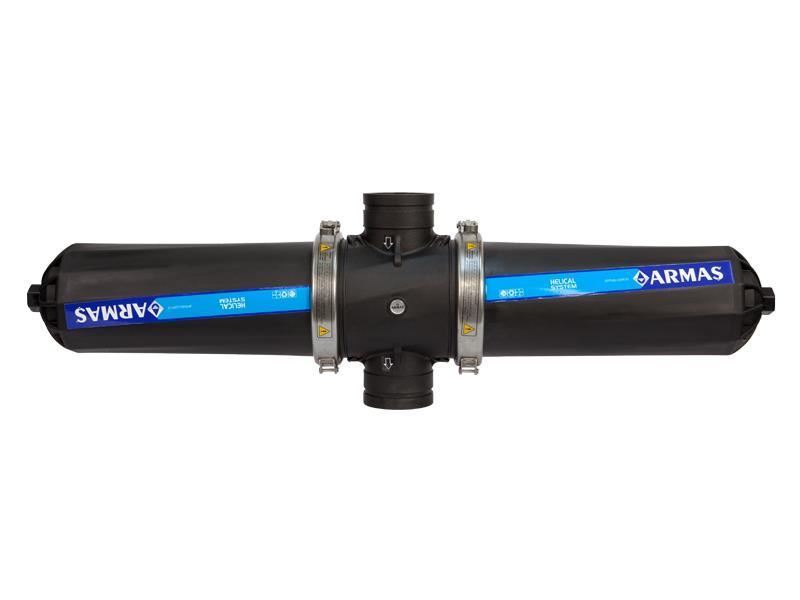

Double Plastic Disc Filters

SKU: DDF
Delivery date: 3-5 business days
Manufacturer: Armas Valves & Filters
Body Material : Plastic Carbon
Internal Materials : PP - PRGF
Maximum Working Pressure : 8 bar
Maximum Working Temperature : 60°C
The Filtration Sensitivity : 100-130-200 micron
Cartridge : Disc
NZ $528.00
NZ $635.00
*

PLEASE SELECT A SIZE

 Download General Manual Filters Catalogue


Technical Specifications



DD Double Plastic disc filter technical Product Code D D1 H K M T Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
DDF 3 80 3" 190 1200 340 1/4” 3/4” 70 3600 13.66
DDF 4 100 4" 190 1200 340 1/4” 3/4” 80 3600 13.38

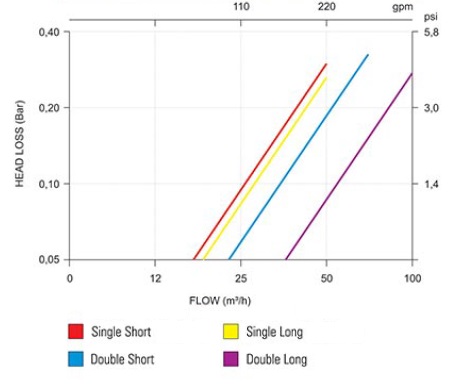

Manual plastic filter head loss curve

 Download General Manual Filters Catalogue


Technical Specifications



DD Double Plastic disc filter technical Product Code D D1 H K M T Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
DDF 3 80 3" 190 1200 340 1/4” 3/4” 70 3600 13.66
DDF 4 100 4" 190 1200 340 1/4” 3/4” 80 3600 13.38



Manual plastic filter head loss curve
