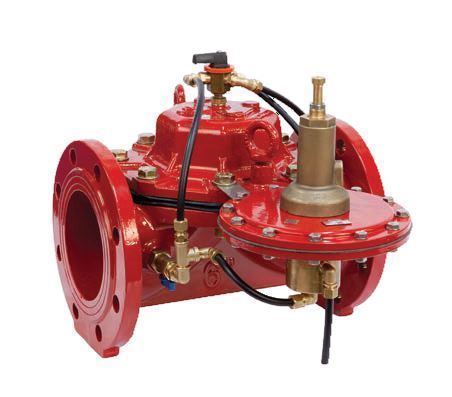

Altitude Controlled Valve

Altitude Controlled Valve controls the water volume without float in an elevated tank.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
Made in
:
Turkey
NZ $924.00
Manufacturer: Armas Valves & Filters
SKU: 600-Series-ALT
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
  • Grooved End
    Grooved End
    Not available
  • Flanged
    Flanged
    Not available
*
*
*
*
+ -

Armas 600 Series - Altitude Controlled Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Altitude Controlled Valve 600 series parts

ARMAS 600 Series Altitude Controlled Valve

Armas Altitude Controlled Valve is an automatic, high sensitive pilot controlled, level control valve, activated by the static pressure of the tank tower. The high sensitive pilot valve opens or close the main valve in response to the static pressure of water level in tank. The pilot valve located outside the tank tower. There is no need any floats.

COMPONENTS:

  1. Altitude Pilot
  2. Ball Valve
  3. 3- Way Selector Valve
  4. Ball Valve
  5. In-line Finger Filters

ARMAS 600 Series Altitude Controlled Valve Sample Application

Altitude Controlled Valve 600 series sample

Armas 600 Series - Altitude Controlled Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Altitude Controlled Valve 600 series parts

ARMAS 600 Series Altitude Controlled Valve

Armas Altitude Controlled Valve is an automatic, high sensitive pilot controlled, level control valve, activated by the static pressure of the tank tower. The high sensitive pilot valve opens or close the main valve in response to the static pressure of water level in tank. The pilot valve located outside the tank tower. There is no need any floats.

COMPONENTS:

  1. Altitude Pilot
  2. Ball Valve
  3. 3- Way Selector Valve
  4. Ball Valve
  5. In-line Finger Filters

ARMAS 600 Series Altitude Controlled Valve Sample Application

Altitude Controlled Valve 600 series sample
