COST EFFECTIVE, ALUMINIUM, double-nozzle, medium flow rates, impact irrigation sprinkler.


Water Input
:
1.5" Female BSP

Working Pressure
:
29 - 70 psi

Water Flow
:
86 - 309 l/min

Shooting Radius
:
19 - 28 m

Free Nozzles
:
10, 12, 14 mm

Body Angle
:
30°

Box Dimensions
:
25x40x6 cm

Weight
:
1.5 kg

Sprayers
:
2

Material
:
Aluminium & Brass

Made in
:
Turkey
NZ $152.00
Manufacturer: DuCaR Sprinklers
SKU: Atom28-ECON
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

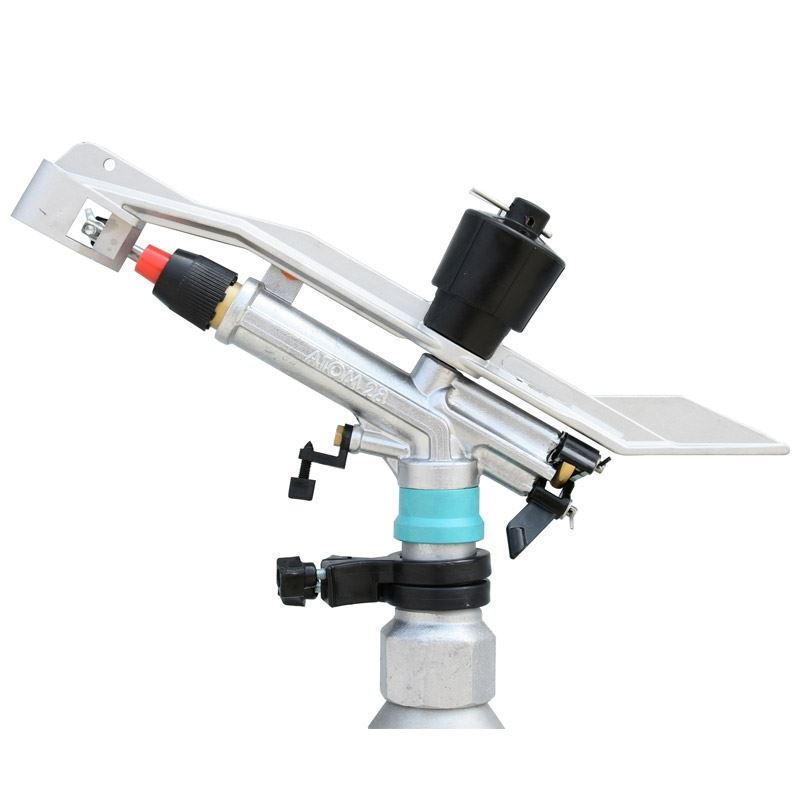

DuCaR ATOM 28 ECON is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR ATOM 28 ECON sprinkler:

  • Comes with 3 different nozzles (10, 12, 14 mm)
  • 2 Trajectories
  • Runs on pressure range between 29 to 70 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 56m diameter
  • Lays down 6.5 to 18.8 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • ALUMINIUM Body and BRASS housing.
Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

DuCaR ATOM 28 ECON is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR ATOM 28 ECON sprinkler:

  • Comes with 3 different nozzles (10, 12, 14 mm)
  • 2 Trajectories
  • Runs on pressure range between 29 to 70 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 56m diameter
  • Lays down 6.5 to 18.8 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • ALUMINIUM Body and BRASS housing.
Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7
Products specifications
Attribute name Attribute value
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1.5"
Circle Full & Part
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 73 psi (5 bar)
Minimum Required Water Flow 85 l/min
Maximum Water Flow 300 l/min
Minimum Shooting Range 16 - 20 m
Maximum Shooting Range 26 - 30 m
Box Dimension 25x40x6 cm
Nozzles 10, 12, 14 mm
Weight 1.6
