Calpeda GXRM Submersible Drainage Pump

Premium quality submersible drainage pump in stainless steel with open impeller

Motor Range
:
0.25 KW (0.33 HP) - 0.45 KW (0.6 HP)
Impeller
:
Chrome-nickel steel
Body
:
Chrome-nickel steel
Maximum immersion depth
:
5 m
Minimum water level w/float
:
70 mm
NZ $708.00
NZ $850.00
Manufacturer: Calpeda Pumps
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Construction

  • Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
  • GXR drainage pump with open impeller.
  • Motor cooled by the pumped water passing between the motor jacket and the external jacket.
  • Double shaft seal with oil chamber.
  • Made in Italy

Applications

  • For clean water containing solids up to 10 mm grain size.
  • For draining rooms or or emptying tanks.
  • Extraction of water from ponds, streams or pits and for rainwater collection.
  • For irrigation purposes.

Operating Conditions

  • Solids passage up to 10 mm
  • Liquid temperature up to 50 oC
  • Maximum immerson depth: 5m
  • Minimum water level with float: 70 mm
  • Minimum water level manual operation: 15 mm
  • Continuous duty

Motor:

  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
  • Fsingle-phase 230 V, with float switch and thermal protector.
  • Incorporated capacitor.
  • Insulation class F.
  • Protection IP X8 (for continuous immersion)
  • Double impregnation humidity-proof dry winding.





Calpeda-GXR Curves

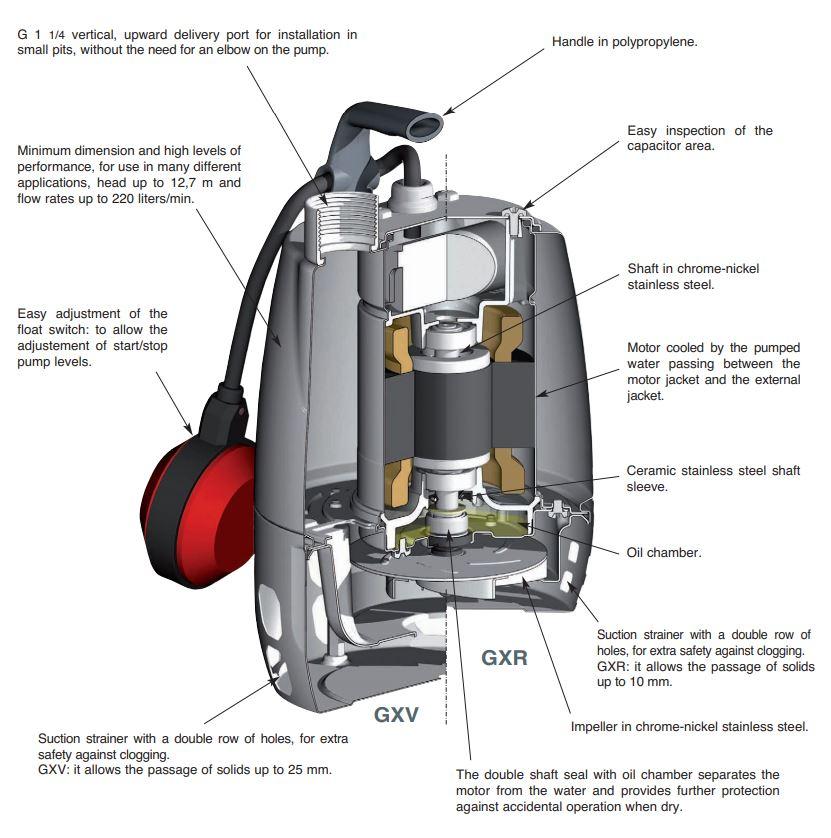

Calpeda-GXRM-Features
Calpeda-GXR-Installation
Calpeda-GXR-Dimensions-Weights

Construction

  • Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
  • GXR drainage pump with open impeller.
  • Motor cooled by the pumped water passing between the motor jacket and the external jacket.
  • Double shaft seal with oil chamber.
  • Made in Italy

Applications

  • For clean water containing solids up to 10 mm grain size.
  • For draining rooms or or emptying tanks.
  • Extraction of water from ponds, streams or pits and for rainwater collection.
  • For irrigation purposes.

Operating Conditions

  • Solids passage up to 10 mm
  • Liquid temperature up to 50 oC
  • Maximum immerson depth: 5m
  • Minimum water level with float: 70 mm
  • Minimum water level manual operation: 15 mm
  • Continuous duty

Motor:

  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
  • Fsingle-phase 230 V, with float switch and thermal protector.
  • Incorporated capacitor.
  • Insulation class F.
  • Protection IP X8 (for continuous immersion)
  • Double impregnation humidity-proof dry winding.





Calpeda-GXR Curves
Calpeda-GXRM-Features
Calpeda-GXR-Installation
Calpeda-GXR-Dimensions-Weights
