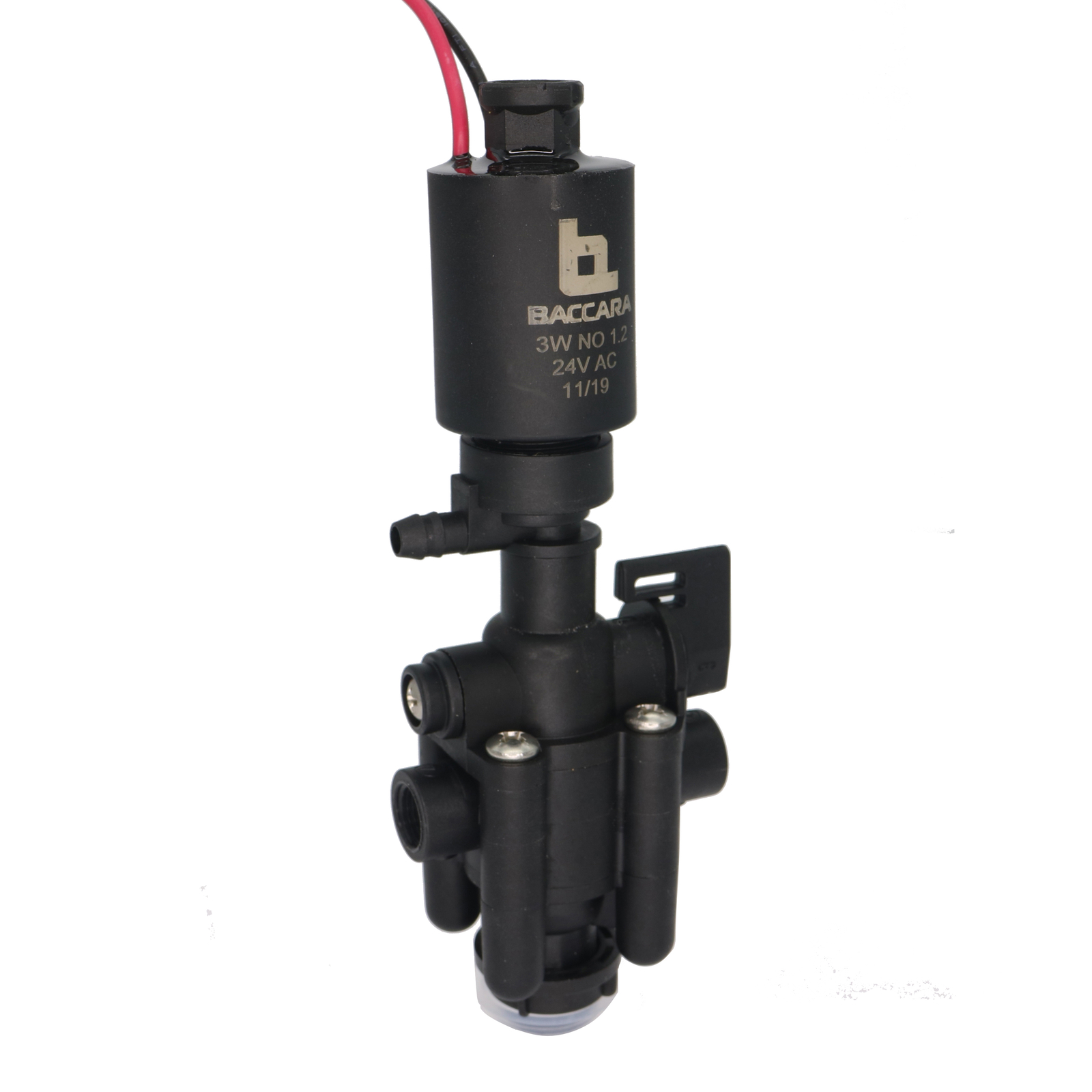

Technical Data
| Function |
3 Way NC, NO |

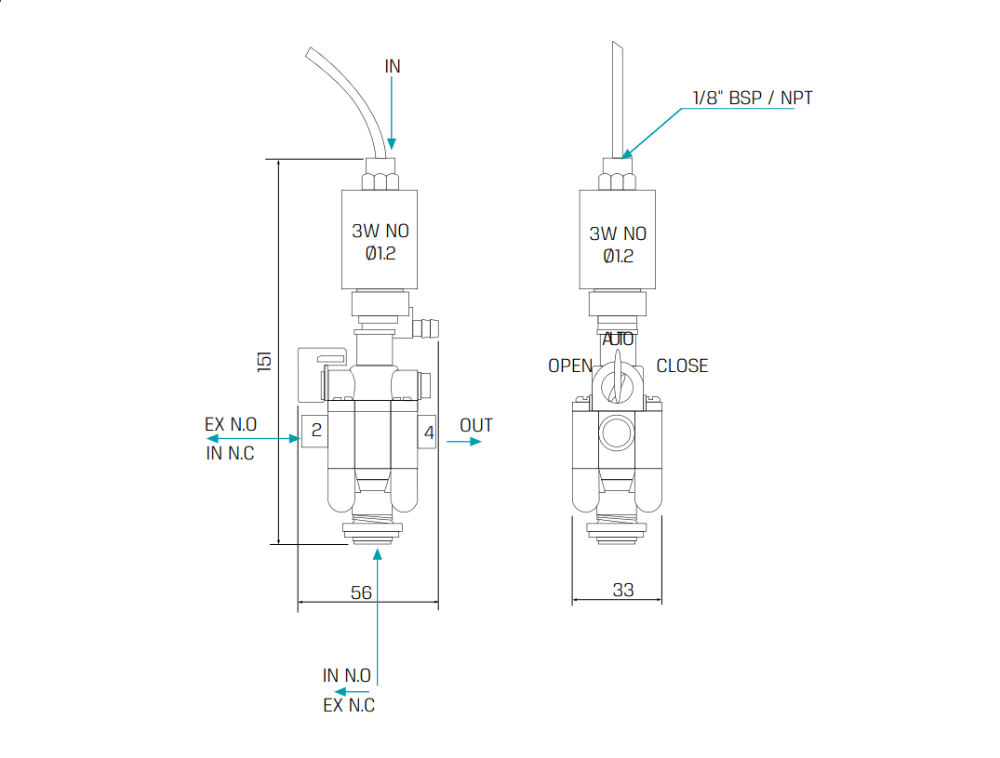

| Ports size |
1/8" BSP & NPT |
| Orifice size |
5mm |
| Pressure range |
1 to 10 bar |
| Temperature range |
Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC |
Materials in contact
with media |
Main Valve:
Reinforced Nylon
Solenoid Operator:
Stainless Steel 300 & 400 series
Seals:
NBR
Spring:
Stainless Steel AISI 300 series |
| Manual override |
Manual override with 3 positions :
• AUTO - for automatic operation (valve is
open when solenoid is energized)
• MANUAL - valve is kept open
• CLOSE - valve is kept closed |
| Solenoid |
Assembled with 3W NO 1.2mm G75 operator |
| Coil voltage |
• Voltage and power consumption - see table |
| Standard protection class |
IP66 |
Voltage and Current Table
| Solenoid |
Voltage |
Inrush [A] |
Holding [A] |
| 2W 50 Hz |
+10%
n-20%
V |
0.3 |
0.19 |
| 2W 60 Hz |
0.2 |
0.14 |
| 3W 50/60 Hz * |
0.125 |
0.125 |
| DC |
4.5W |
* Except 24V AC without Diode
Voltage and Power Consumption
| |
AC (W) |
DC (W) |
| 50 Hz |
| V |
2 |
4.5 |
12
|
• |
• |
| 24 |
• |
• |
• Available options
Coil resistance vs input voltage range
| Resistance [Ω] |
Suitable input voltage range [V] |
| 4 |
6 - 9 |
| 9 |
12 - 14 |
| 12 |
14 - 16 |
| 23 |
18 - 21 |
